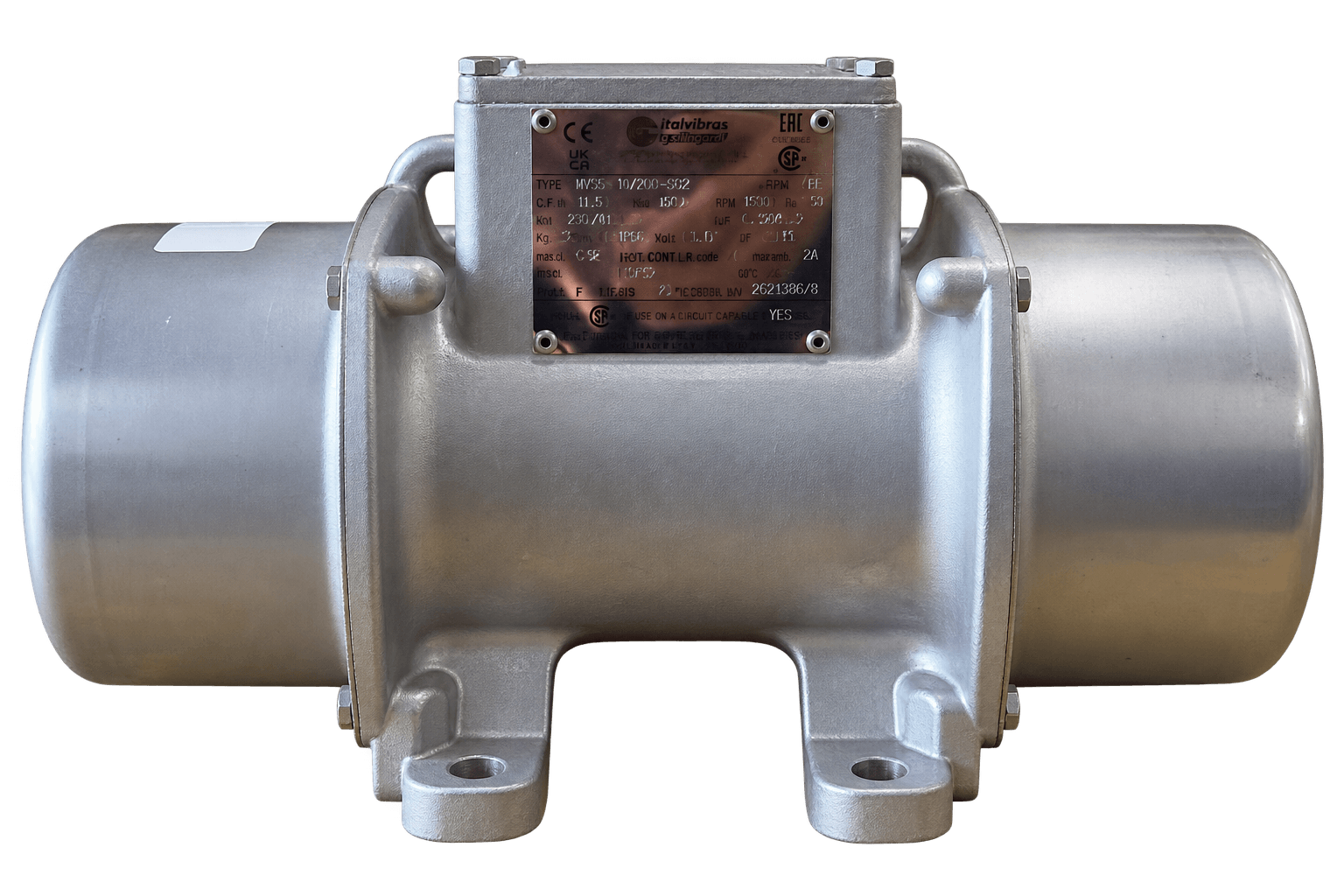

Italvibras electric vibrator motor MVSS 10/100-S02

Supplied and delivered by Audimat, official Italvibras distributor: the MVSS 10/100-S02 is a three-phase 6-pole foot-mounted electric vibrator motor in AISI 304 stainless steel.

AUDIMAT

Availability

In stock Immediate dispatch

Available from the supplier Italvibras

Request a quote →

The MVSS 10/100-S02 at Audimat

Built in AISI 304 stainless steel, the MVSS 10/100-S02 is designed for hygiene-critical settings: food, pharmaceuticals, chemicals.

Audimat, official Italvibras distributor.

Technical data

Centrifugal force (100%, 50Hz)	0,93 kN
Speed (50Hz)	1’000 rpm
Current (400V/50Hz)	0,30 A
Weight	15,8 kg
Dimensions L×W×H	295×176×152 mm
Material	AISI 304 stainless steel
Protection	IP66
Brand	Italvibras

Documents to download

PDF MVSS 6 pole datasheet

Documentation reserved for Audimat customers — request the access code.

Applications of the MVSS 10/100-S02

Particularly suited to the following applications:

Food industry
Pharmaceutical hoppers
Hose-down environments

Design and operation

The MVSS 10/100-S02 houses a three-phase asynchronous motor , fully clad in AISI 304 stainless steel — body, weight covers and external parts — for complete protection against liquids, dust, aggressive agents and contaminants. Protection IP66, insulation class F (155°C, H on request), continuous operation from -20°C to +40°C.

Its centrifugal force adjusts steplessly through the patented ARS system, which rules out errors when setting the eccentric weights. Nameplate in AISI 316L stainless steel, even more corrosion-resistant than the body of the vibrator itself.

A question about sizing, mounting or compatibility with your installation? get in touch.
