GOOD VIBRATION
The families to consider when the atmosphere is not classified and the environment imposes nothing in particular.
Five families, three different protection methods. The choice depends first of all on the zone classification: gas, dust, or both.

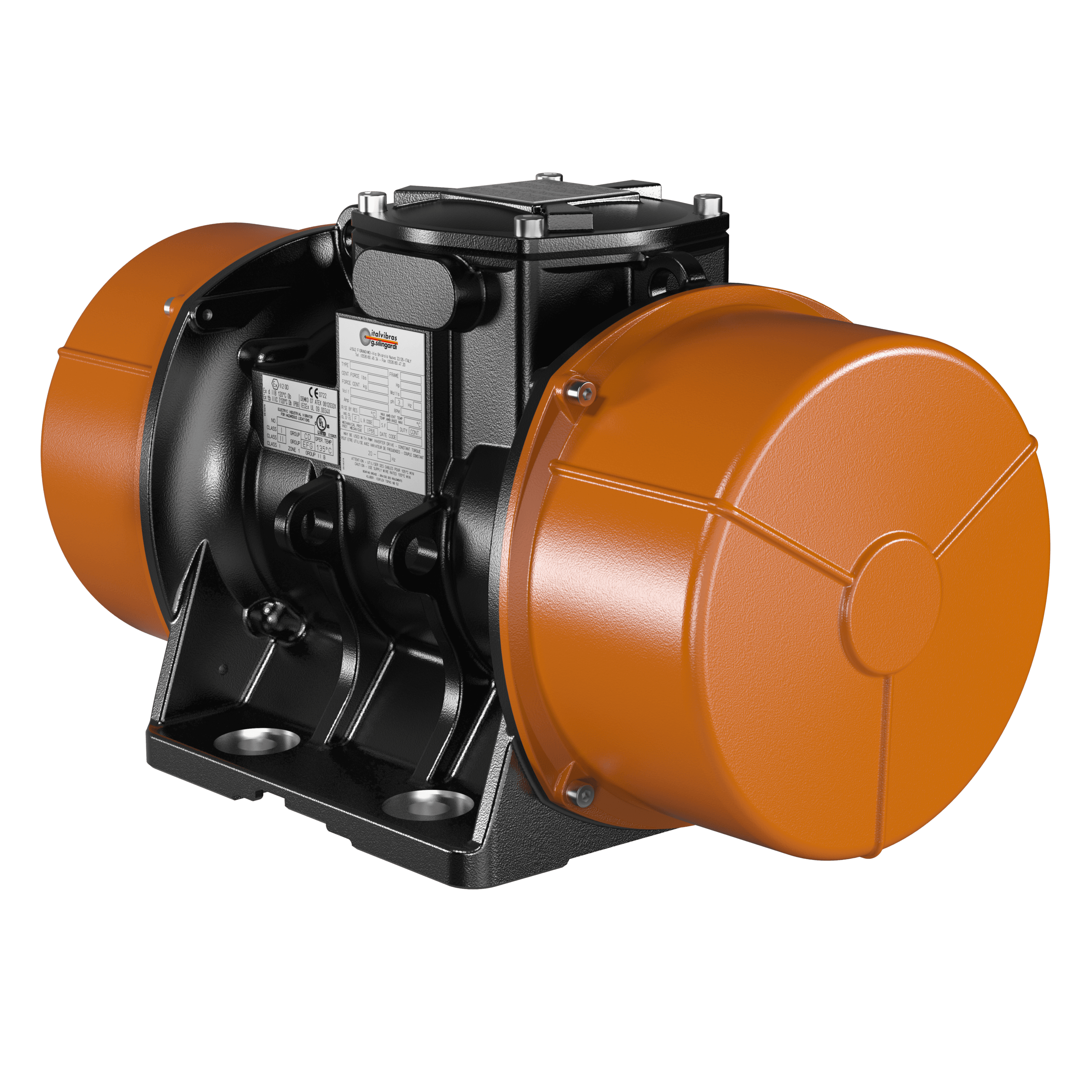

CDXFlameproof enclosure « db »40 references — zones 1, 2, 21 and 22 — up to 220 kN

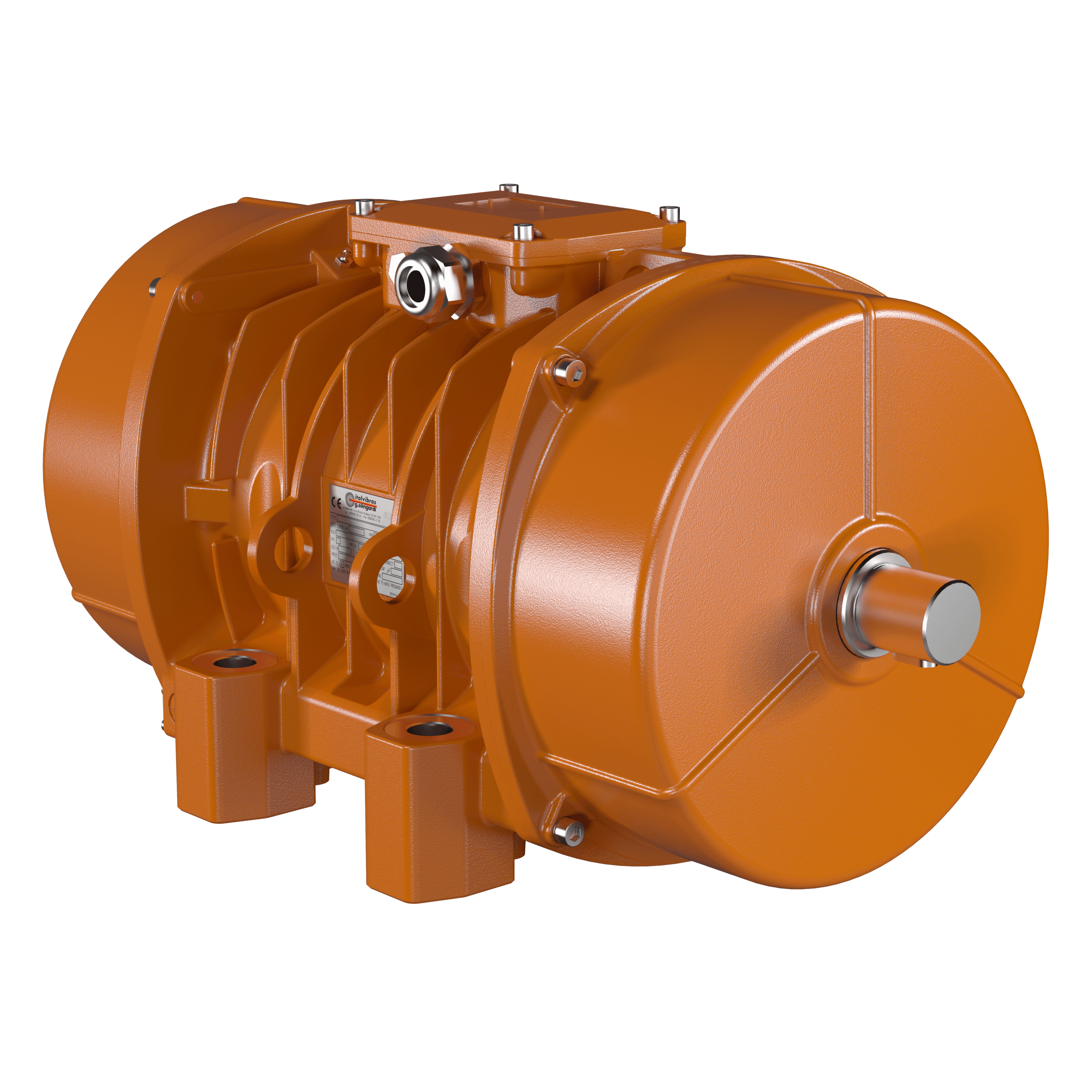

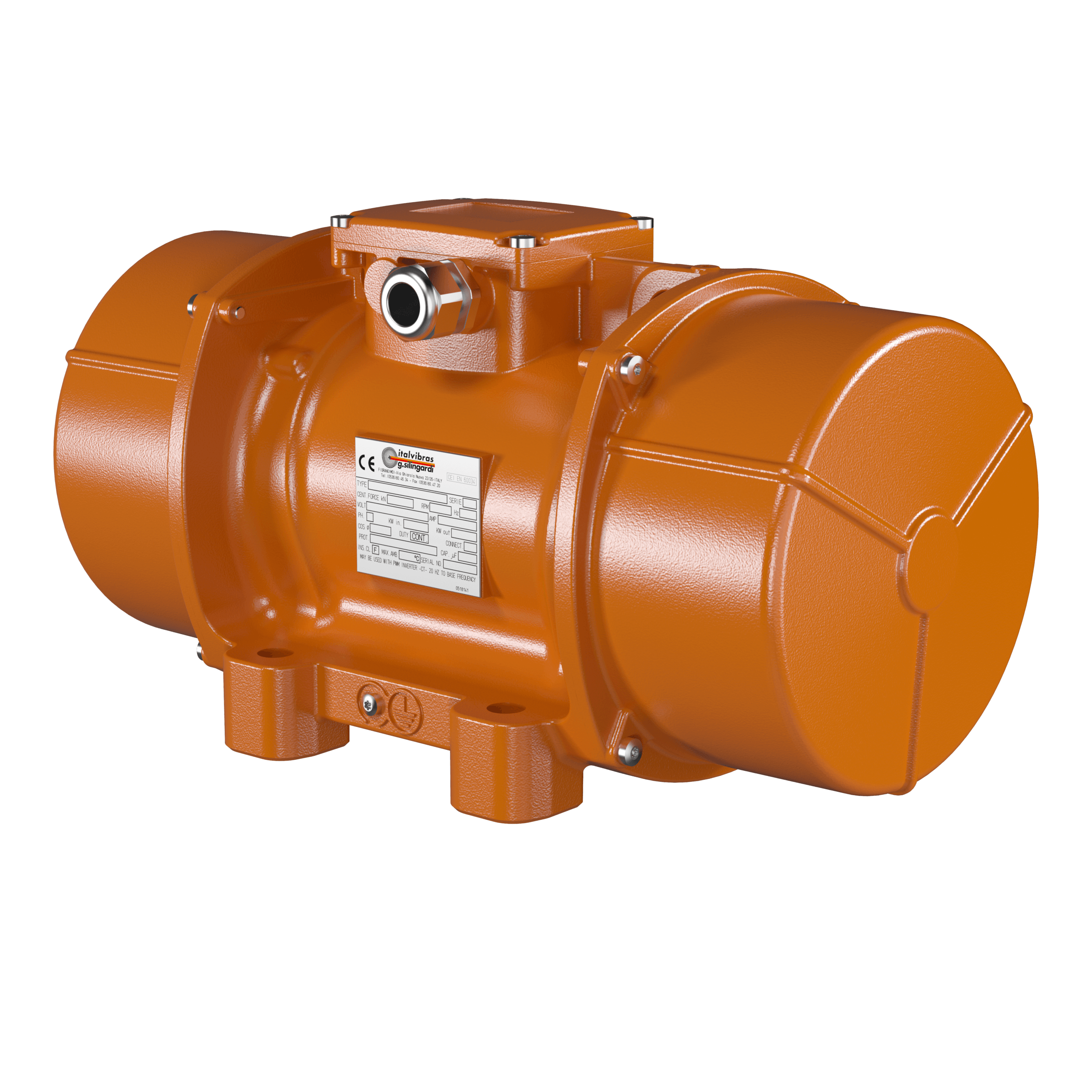

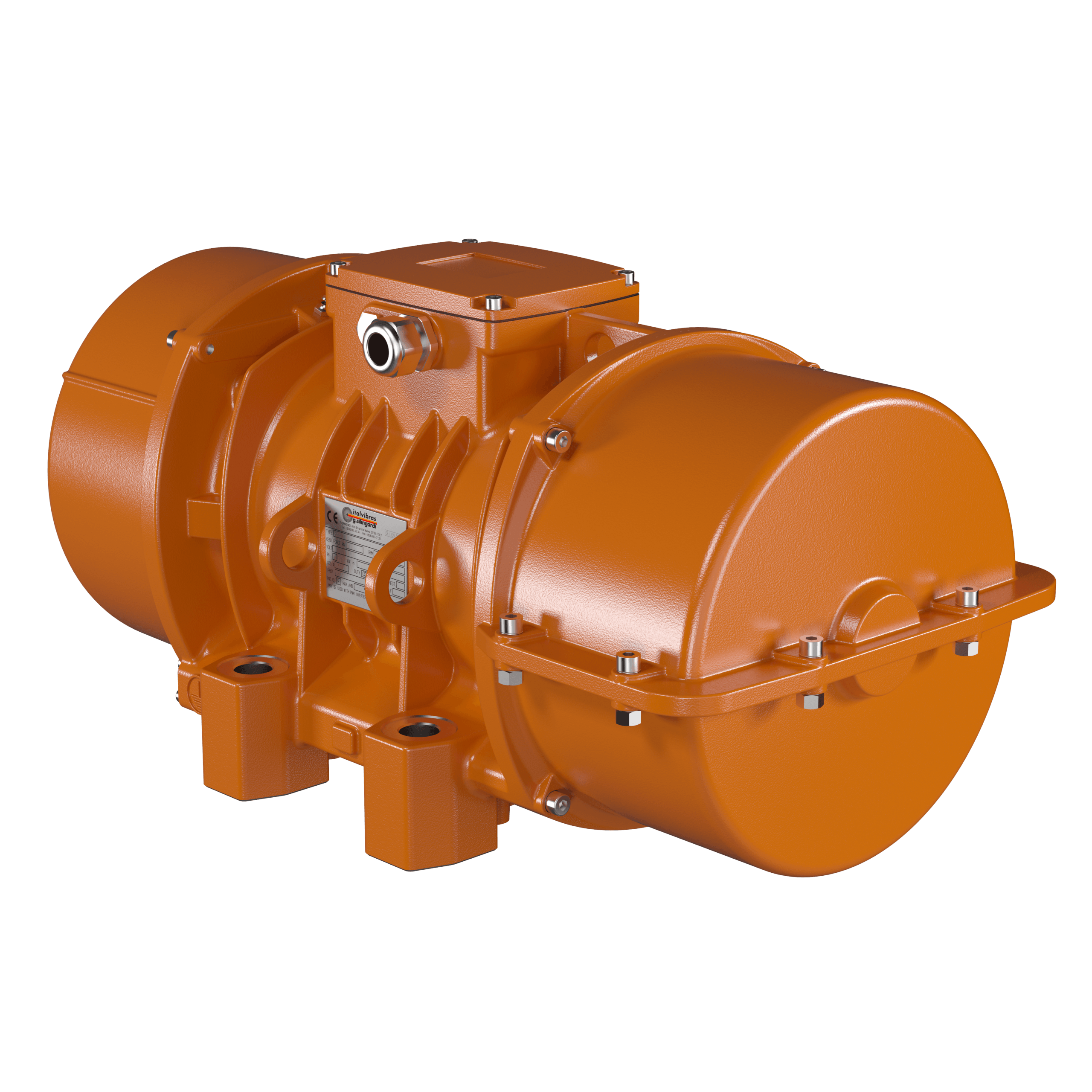

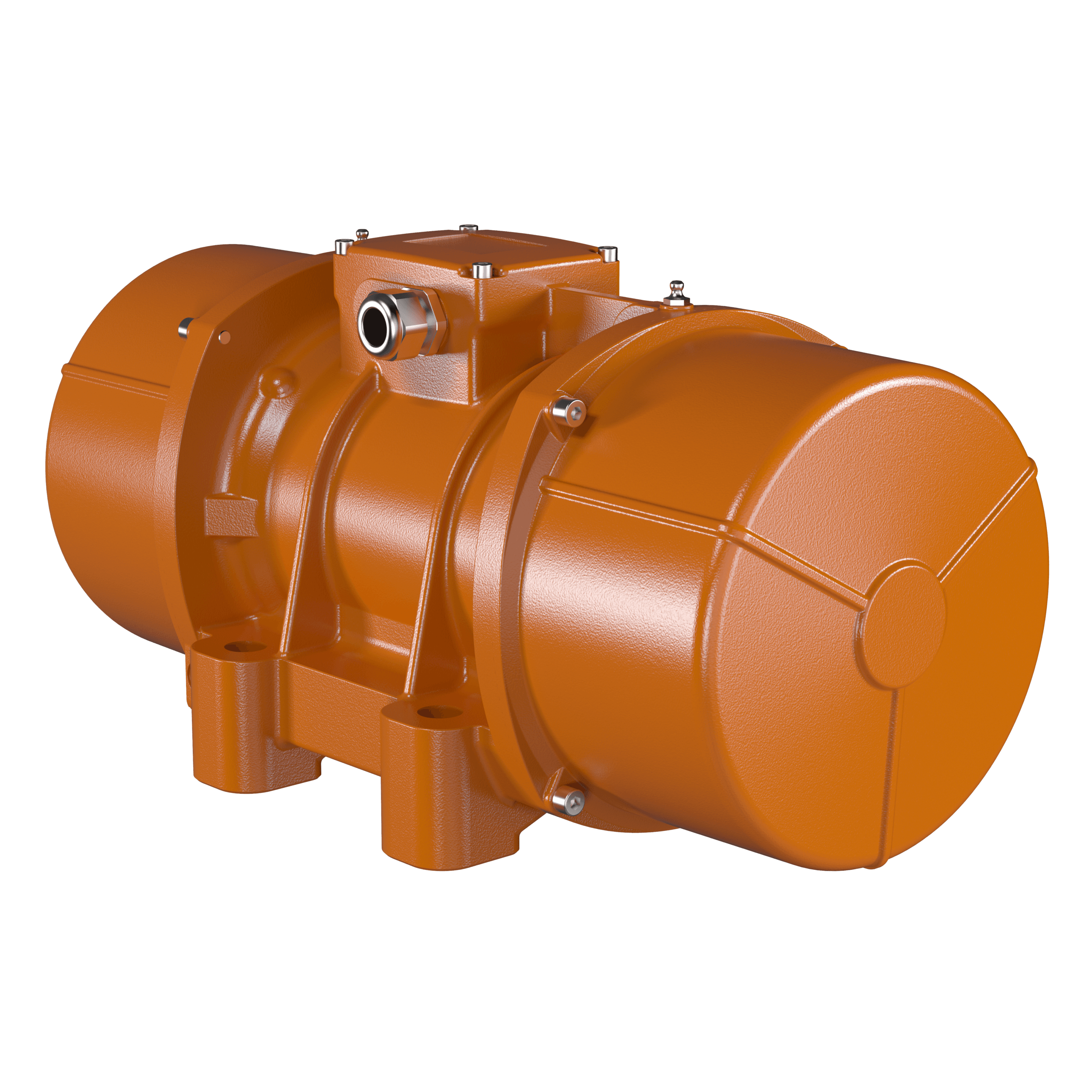

MVSI-EIncreased safety « e », gas and dust58 references — zones 1, 2, 21 and 22

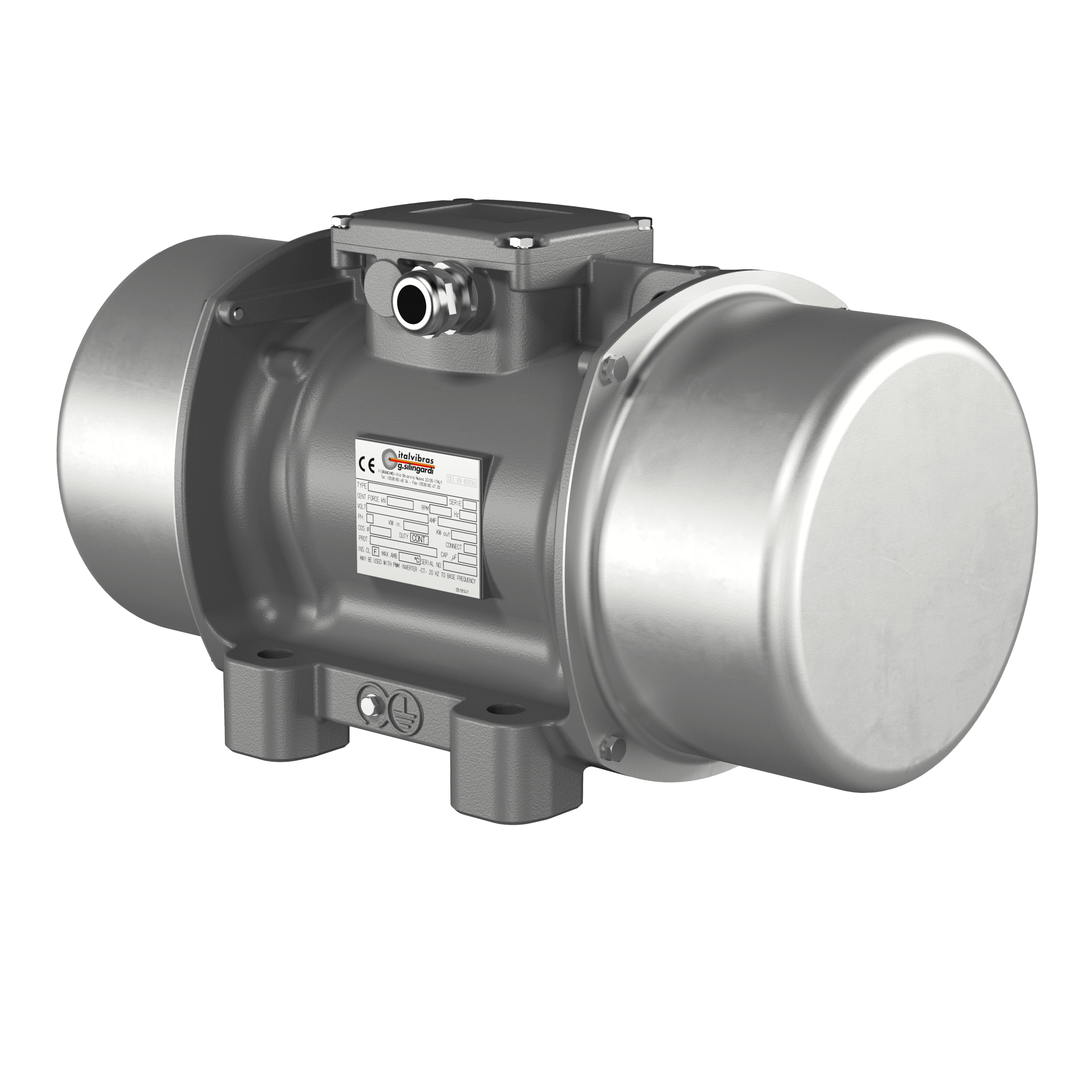

MVSS-PAISI 304 stainless, ATEX certified for dust43 references — zones 21 and 22 — dedicated page

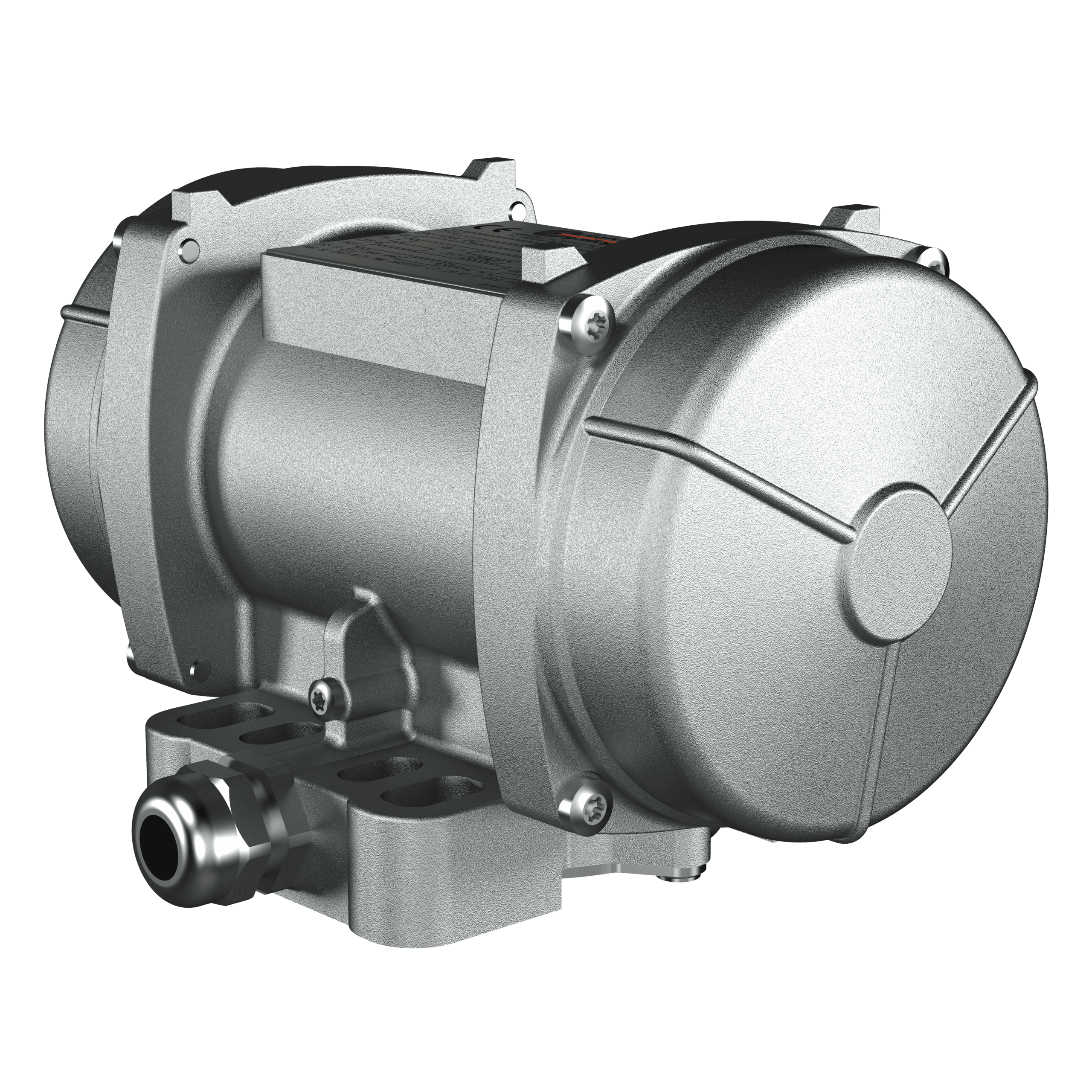

M3Compact size, dust6 references — zones 21 and 22 — up to 2.94 kNM3-ECompact size, gas and dust4 references — zones 1, 2, 21 and 22When it is the environment, the space available, the power supply or the machine itself that drives the choice.
MVSSAISI 304 stainless steel, intensive washdown41 references — food, pharmaceutical, chemical
MICROMiniature, for automatic machines3 references — 39 to 638 N — from 0.92 kg
MVCCDirect current, without mains supply5 references — 12 and 24 V — up to 14.9 kN
MVT, MVTXScreen vibrator motors8 references — up to 77.8 kN — ATEX version availableThese twelve families differ neither in power nor in quality : they answer different constraints. Three questions are enough to narrow the choice.
Is your installation in a classified area ? If so, the classification — gas, dust or both — determines on its own which families are possible. Does the environment require a particular material ? Intensive washdown, food and pharmaceutical applications call for stainless steel. And what power supply do you have ? On a machine without a mains supply, only the direct current series will do.
Force and polarity are chosen afterwards, within the selected family. A high speed releases and fluidises ; a low speed moves the material with a wider amplitude.
Audimat Automation is an official Italvibras distributor. Describe your application, the zone classification and the mass to be set in motion : we will point you to the right family and reference.
Request a quote+32 2 735 38 95
