GOOD VIBRATION

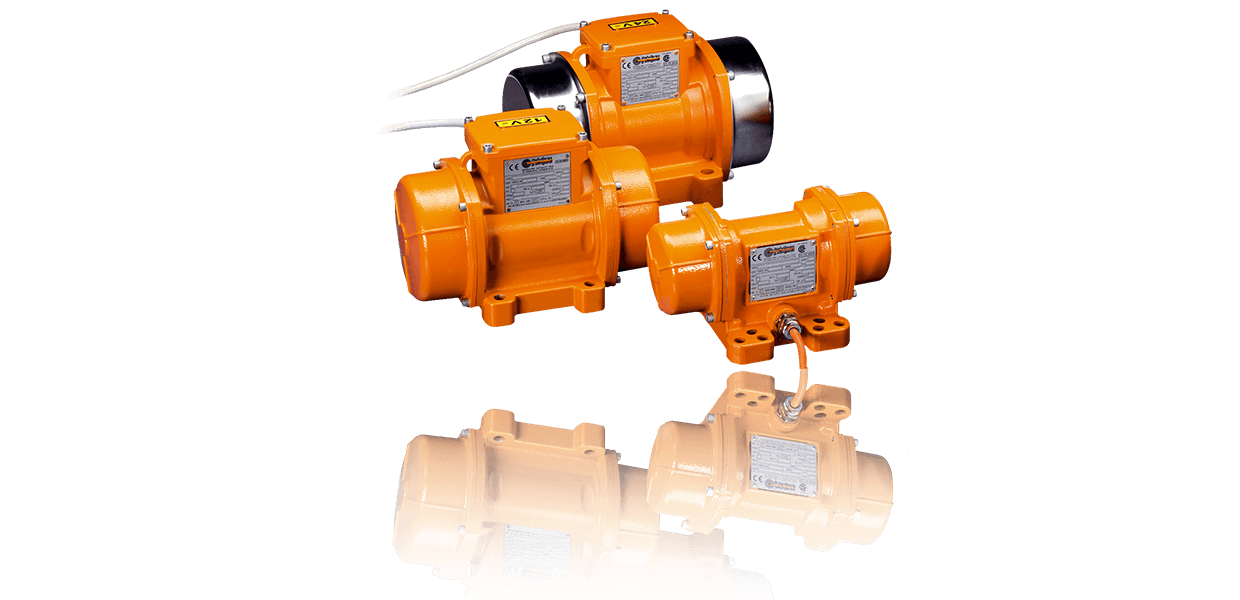

The MVCC series was designed for situations where no mains supply exists : a direct current vibrator connected straight to the battery of a vehicle or machine.
Five references, from 1.20 to 14.9 kN, from 5.7 to 21 kg. Three run on either 12 or 24 V, the two most powerful on 24 V only.
| Reference | Force | kgf | Speed | Weight | Power | A at 12 V | A at 24 V | Base |
|---|---|---|---|---|---|---|---|---|
| MVCC 3/100-S08 MF | 1,20 kN | 122 kgf | 3,000 rpm | 5,7 kg | 190 W | 8,00 A | 4,00 A | Multi-hole |
| MVCC 3/200-S08 MF | 1,99 kN | 203 kgf | 3,000 rpm | 6,3 kg | 190 W | 8,00 A | 4,00 A | Multi-hole |
| MVCC 3/500 | 5,72 kN | 584 kgf | 3,000 rpm | 13,0 kg | 270 W | 22,5 A | 11,3 A | Standard |
| MVCC 3/1200 | 11,1 kN | 1130 kgf | 3,600 rpm | 20,0 kg | 530 W | — | 22,0 A | Standard |
| MVCC 3/1500 | 14,9 kN | 1520 kgf | 3,600 rpm | 21,0 kg | 530 W | — | 22,0 A | Standard |
The Italvibras catalogue publishes neither the dimensions nor the cable entry of the MVCC 3/1200 and 3/1500 — we obtain them on request.
On this series, force is not the first criterion. It is the vehicle's electrical circuit that governs, and it must be looked at before anything else.
The MVCC 3/100, 3/200 and 3/500 accept both 12 and 24 V. The 3/1200 and 3/1500 run on 24 V only : the catalogue publishes no current value at 12 V for these two references. On a 12 V machine, the choice therefore stops at the 3/500 and its 5.72 kN.
This is the point that surprises most. At low voltage, a modest power translates into a high current : the MVCC 3/500 and its 270 W draw 22.5 A at 12 V, against 11.3 A at 24 V for the same work. The wiring, the fuse and the battery capacity must follow. Moving to 24 V where possible halves the current and simplifies the whole installation.
The MVCC 3/100 and 3/200 carry the suffix MF, for multi-hole mounting base. It takes up several different hole spacings, which makes it possible to replace an existing vibrator without re-drilling the hopper or the frame. On equipment already in service, it is often that detail which decides.
The 3/100-MF, 3/200-MF and 3/500 have aluminium alloy covers ; the 3/1200 and 3/1500 have them in AISI 304 stainless steel. A point to note if the machine is exposed to salt or fertiliser — a frequent case on gritters and spreaders.
On this series, the direct current from the battery does not feed the motor directly. Italvibras patented a different arrangement : an electronic board, housed in the vibrator itself, converts the direct current and feeds a conventional three-phase induction motor , with vacuum-impregnated winding. The machine therefore keeps everything that makes an industrial motor reliable — no brushes, no commutator, so no electrical wearing part to replace — while being content with a 12 or 24 volt battery.
Tell us the on-board voltage, the mass to be set in motion and the type of machine : we will point you to the right reference and check with you that the circuit can take the current.
Request a quoteData from the Italvibras general catalogue 2019, pages 66 and 67. Audimat Automation, official Italvibras distributor.
