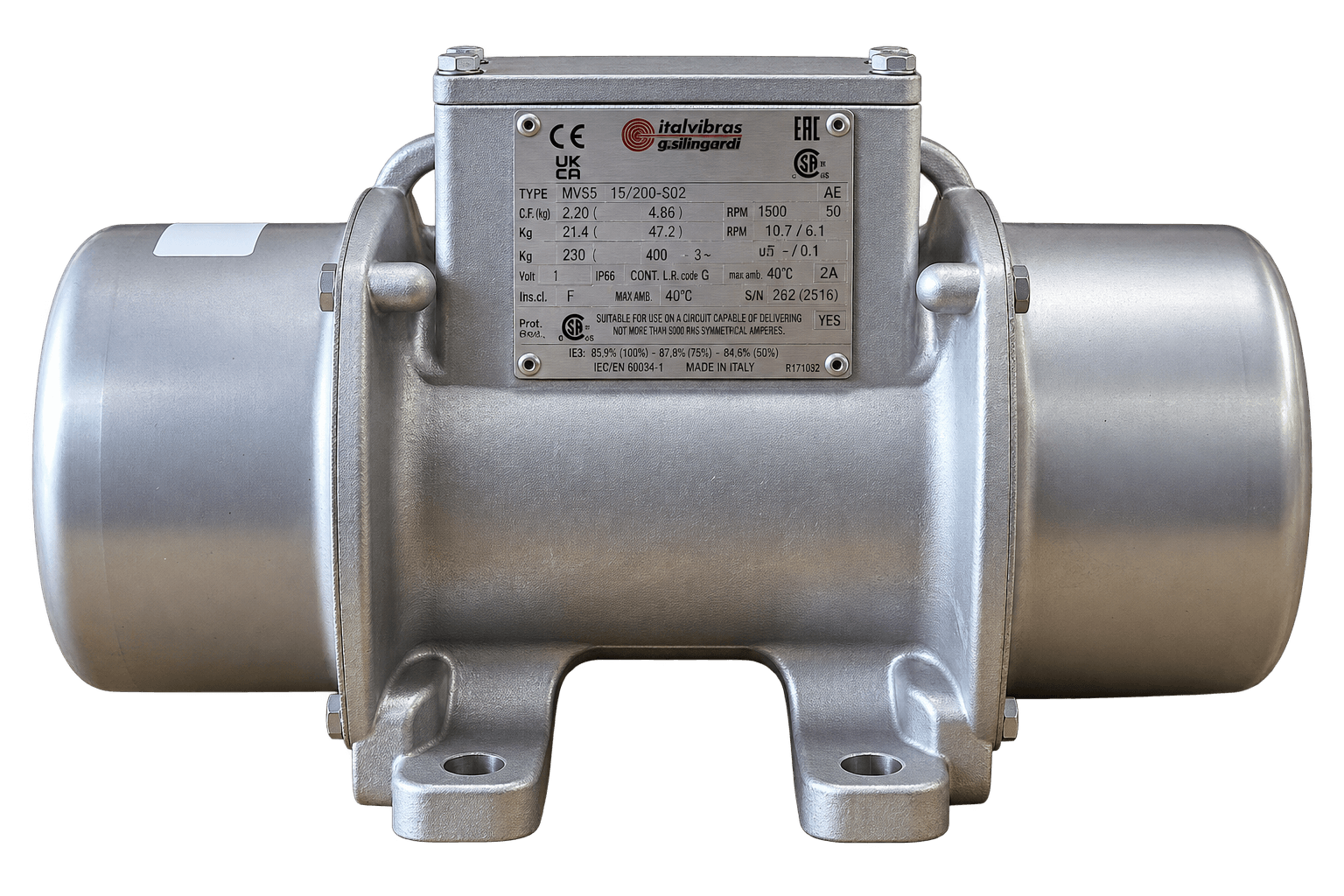

Italvibras electric vibrator motor MVSS 15/2000-S02

Supplied and delivered by Audimat, official Italvibras distributor: the MVSS 15/2000-S02 is a three-phase 4-pole foot-mounted electric vibrator motor in AISI 304 stainless steel.

AUDIMAT

Availability

In stock Immediate dispatch

Available from the supplier Italvibras

Request a quote →

The MVSS 15/2000-S02 at Audimat

Built in AISI 304 stainless steel, the MVSS 15/2000-S02 is designed for hygiene-critical settings: food, pharmaceuticals, chemicals.

Audimat, official Italvibras distributor.

Technical data

Centrifugal force (100%, 50Hz)	20,1 kN
Speed (50Hz)	1’500 rpm
Current (400V/50Hz)	2,50 A
Weight	70,0 kg
Dimensions L×W×H	560×245×230 mm
Material	AISI 304 stainless steel
Protection	IP66
Brand	Italvibras

Documents to download

PDF MVSS 4 pole datasheet

Documentation reserved for Audimat customers — request the access code.

Applications of the MVSS 15/2000-S02

Particularly suited to the following applications:

Food industry
Pharmaceutical hoppers
Hose-down environments

Design and operation

The MVSS 15/2000-S02 houses a three-phase asynchronous motor , fully clad in AISI 304 stainless steel — body, weight covers and external parts — for complete protection against liquids, dust, aggressive agents and contaminants. Protection IP66, insulation class F (155°C, H on request), continuous operation from -20°C to +40°C.

Its centrifugal force adjusts steplessly through the patented ARS system, which rules out errors when setting the eccentric weights. Surface finished by precision ball burnishing, giving a smooth, water-repellent and glossy surface that residues struggle to cling to.

A question about sizing, mounting or compatibility with your installation? get in touch.
